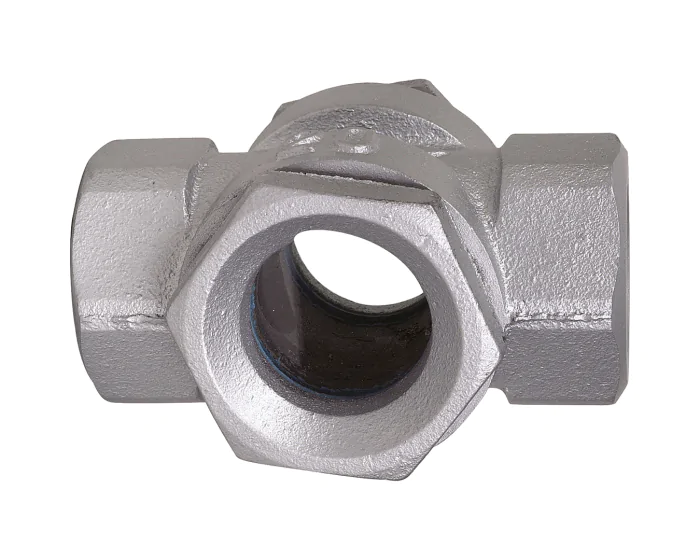

Ductile iron (EN-GJS-400-15) sight glass flow controller, double tempered glass, PS: 16 bar, TS: 180°C, threaded G.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Gasket | PTFE |
| Body material | Ductile iron |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Ductile iron DN15 - 1/2'' | 222004 | S1013455 |
€60.06
(excl. btw)
|
add to cart |
| BSP FF Ductile iron DN20 - 3/4'' | 222005 | S1013456 |
€63.06
(excl. btw)
|
add to cart |
| BSP FF Ductile iron DN25 - 1'' | 222006 | S1013457 |
€77.59
(excl. btw)
|
add to cart |
| BSP FF Ductile iron DN32 - 1''1/4 | 222007 | S1013458 |
€118.40
(excl. btw)
|
add to cart |
| BSP FF Ductile iron DN40 - 1''1/2 | 222008 | S1013459 |
€122.19
(excl. btw)
|
add to cart |
| BSP FF Ductile iron DN50 - 2'' | 222009 | S1013460 |
€142.07
(excl. btw)
|
add to cart |
